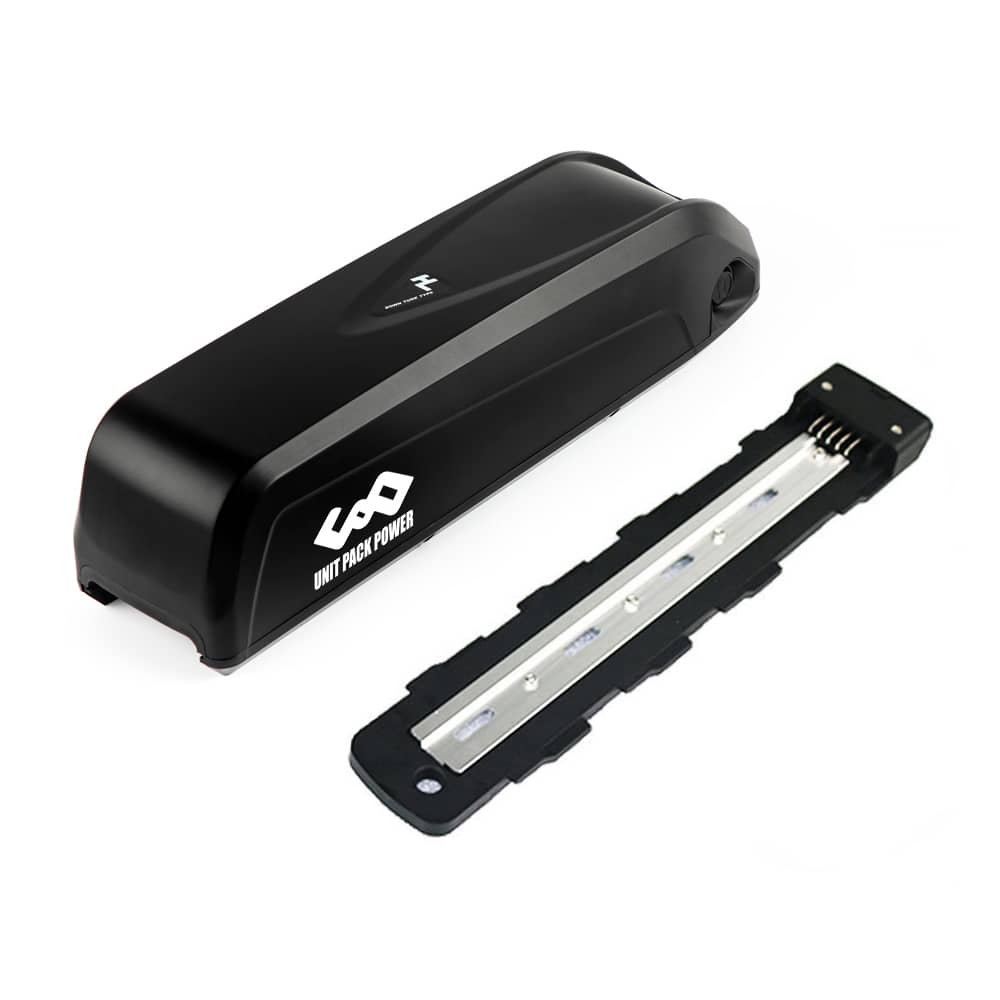

LG 21700 EBike Battery Pack 36V 48V 52V 19.2Ah 14.4Ah 24Ah G56 G70 Case for Electric Bicycle 250W 350W 500W 750W 1000W
Why choose our Unit Pack Power store :
1.Factory directly store : 10 year battery packing experience , from 24V, 36V 48V 52V 60V 72V to DIY Voltage/Size , all we can make it for you, Mature production technology , and filter the high consistency cells , we know how to make a reliable and safe battery for customers .
2.Battery quality : There are Grade A B C level battery , UnitPackPower only use grade A cell for battery , safest packing process ,never use cheap/false cells with false capacity/low price to attrack buyers .price = quality = customer’s service , you want to get a long range/long life/safe battery for your bike , or want to get a unkown cells battery back your home?
- Aftersalse:15days no reason free return service , 1 year warranty, when you buy a battery cannot reach to seller , this won’t happen to us , We have Germany , UK , USA , Canada , Australia local service center service for you .
4.Shipping method and time from China order：This is battery , cannot ship by DHL/UPS/Fedex/DPD directly , it can only special shipping method. ship by train or by air , USA/CA/AU/UK default method is by air with 15-23days. EU defult method is train 30-40days(train) , EU order if you want faster can choose by air,
5 UnitPackPower batteries have insured to International Insurance, rest assured to buy.
Specifications
|
Parameter |
36V14.4Ah 20A -G56 |
36V19.2Ah 20A -G56 |
48V14.4Ah 30A -G56 |
36V24Ah 20A -G70 |
48V19.2Ah 40A -G70 |
52V14.4Ah 30A -G70 |
|
Nominal Voltage |
36V |
36V |
48V |
36V |
48V |
52V |
|
Nominal Capacity |
14.4Ah |
19.2Ah |
14.4AH |
24Ah |
19.2AH |
14.4AH |
|
Nominal Watt Hour |
518WH |
691WH |
691WH |
864WH |
921WH |
748WH |
|
Composed Type |
10S3P |
10S4P |
13S3P |
10S5P |
13S4P |
14S3P |
|
Built-in BMS |
20A |
20A |
30A |
20A |
40A |
40A |
|
Fit Motor Power |
36V 250W 350W 500W maximum |
36V 250W 350W 500W maximum |
48V 350W 500W 750W 1000W max |
36V 250W 350W 500W maximum |
48V 350W 500W 750W 1000W 1500W max |
48V/52V 350W 500W 750W 1000W 1500Wmax |
|
Charge Cut-off Voltage |
42V |
42V |
54.6V |
42V |
54.6V |
58.8V |
|
Discharge Cut-off Voltage |
28V |
28V |
36.4V |
28V |
36.4V |
39.2V |
|
Battery Weight |
3KG |
3.8KG |
3.7KG |
4.5KG |
4.7KG |
4.7KG |
|
Battery Charger |
42V2A |
42V2A |
54.6V2A |
58.8V3A |
54.6V3A |
58.8V2A |
|
Battery Pack Cell |

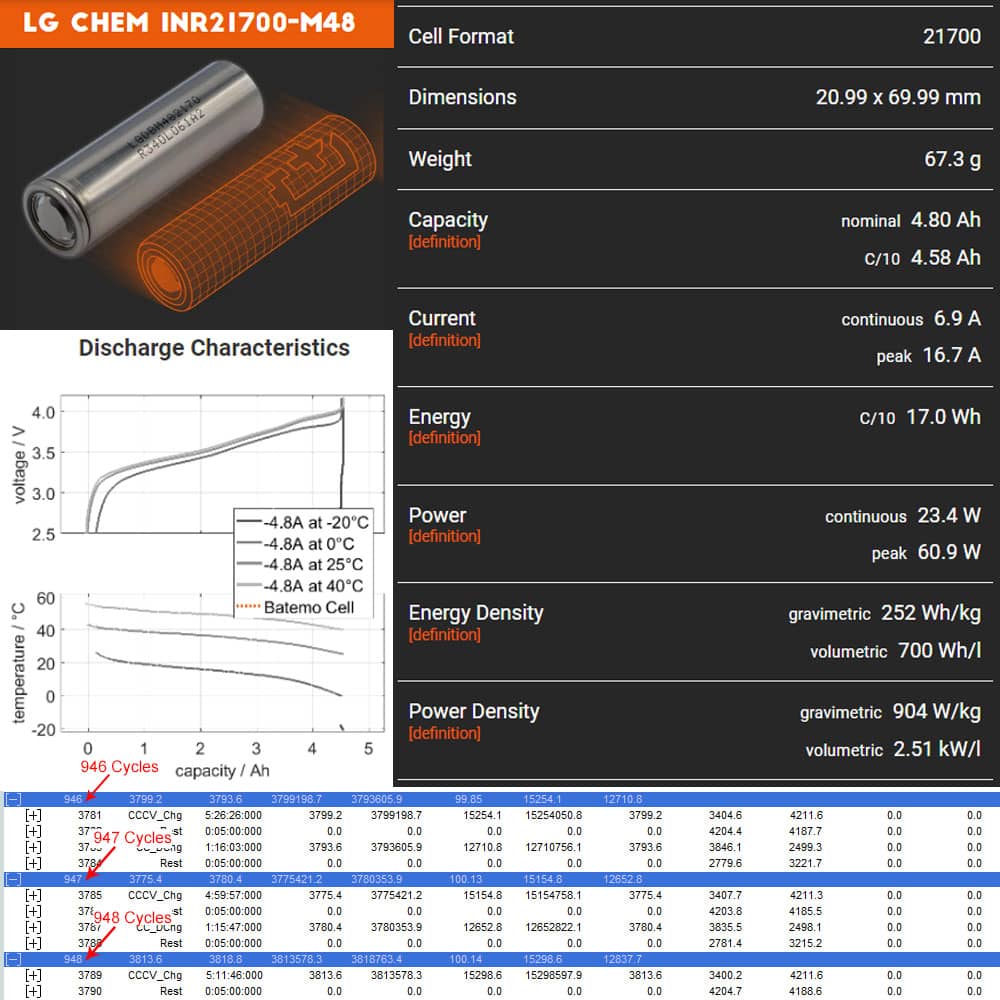

LG 4800mAh 21700 cells Over 1000 Cycles life |
|||||
|
Dimension |

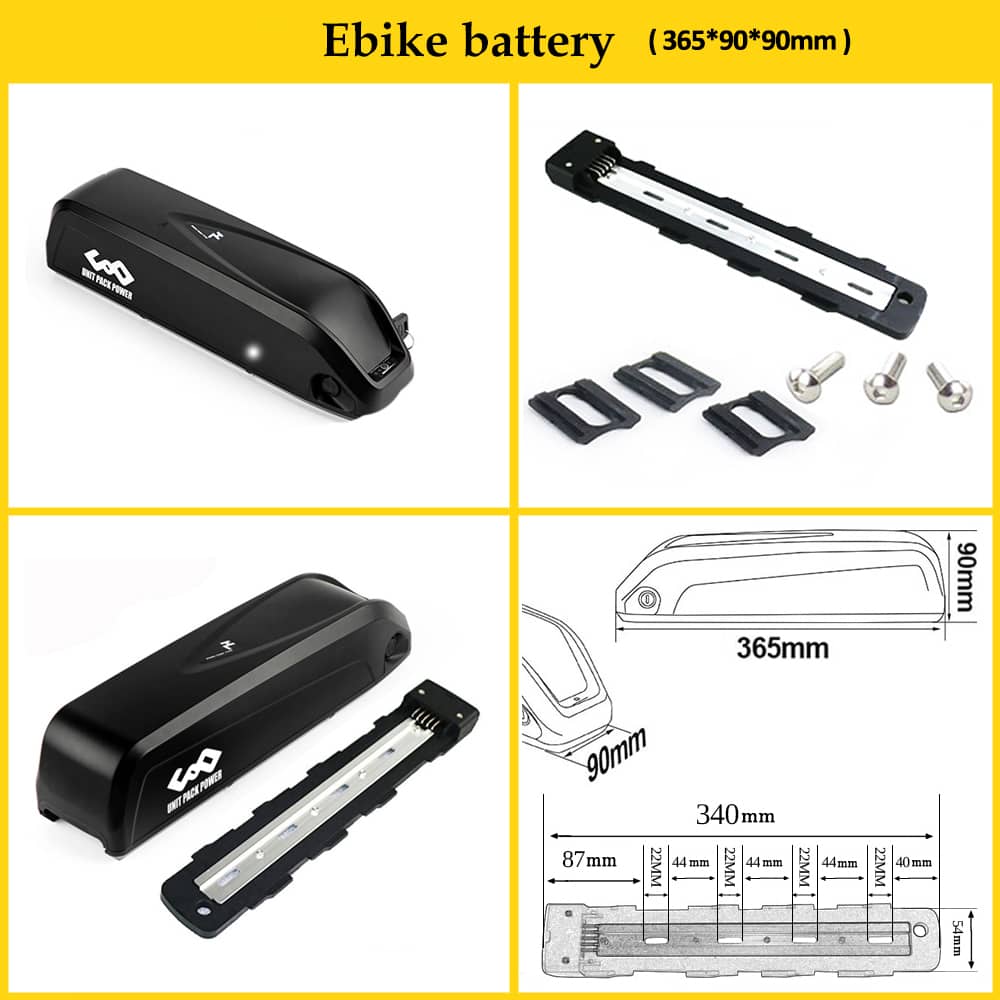

365*90*90mm |
365*90*90mm |
365*90*90mm |

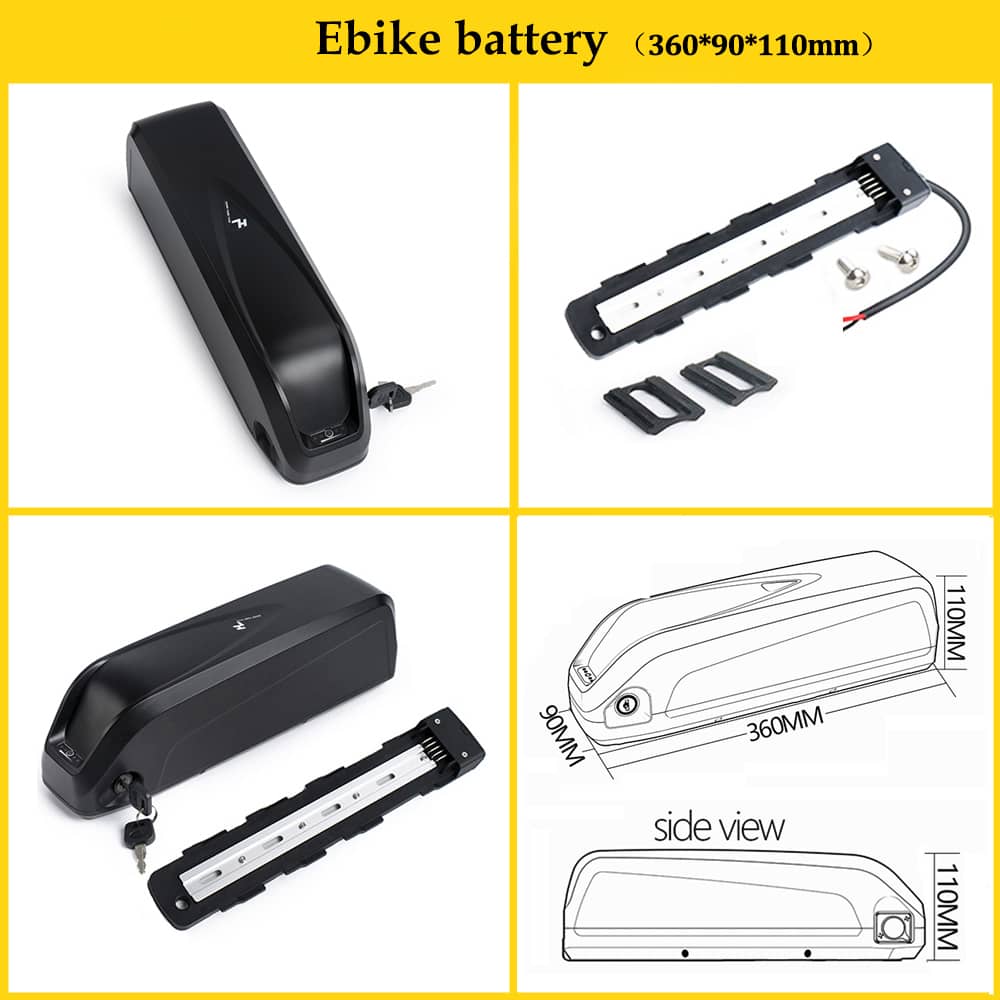

365*90*110mm |
365*90*110mm |
365*90*110mm |
