Overview

Essential details

Brand Name:: onBetter Energy

Model Number:: JMD 400-600W

Place of Origin:: Guangdong, China

Cell size:: 182mmx182mm

Type:: PERC, Half Cell, All Black

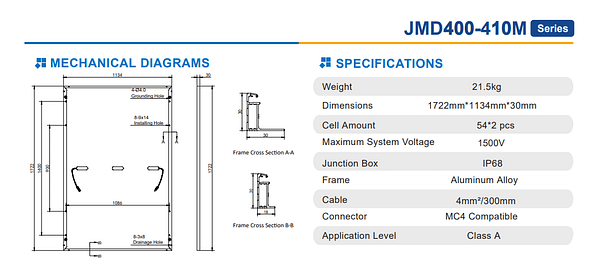

Panel Dimensions:: 1722mm*1134mm*30mm, 1722mm*1134mm*30mm

Panel Efficiency:: 21.3%, 21.3%

Certificate:: TUV/CE/IEC/ISO, CE/TUV/IEC/CEC/INMETRO/ISO

Warranty:: 25YEARS, 25 Years Output Power Guarantee

Name:: Solar panel pv module

Application:: Solar panel system

Power:: 400-425W

Packaging:: 36pcs/pallets, 926pcs/ 40’HQ Container

Color:: All Black

Frame Color:: Anodized Aluminium Alloy

Supply Ability

2000000 Watt/Watts per Day

Packaging Details

36 pcs/pallet
936 PCS

Port

Shenzhen

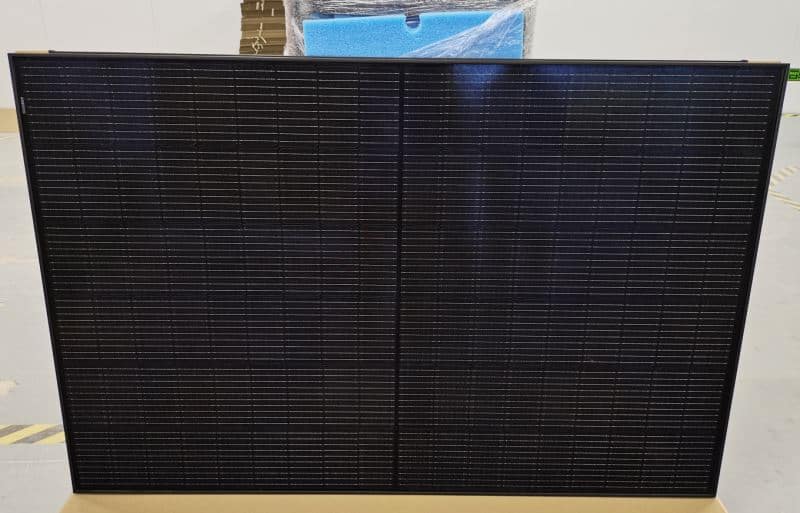

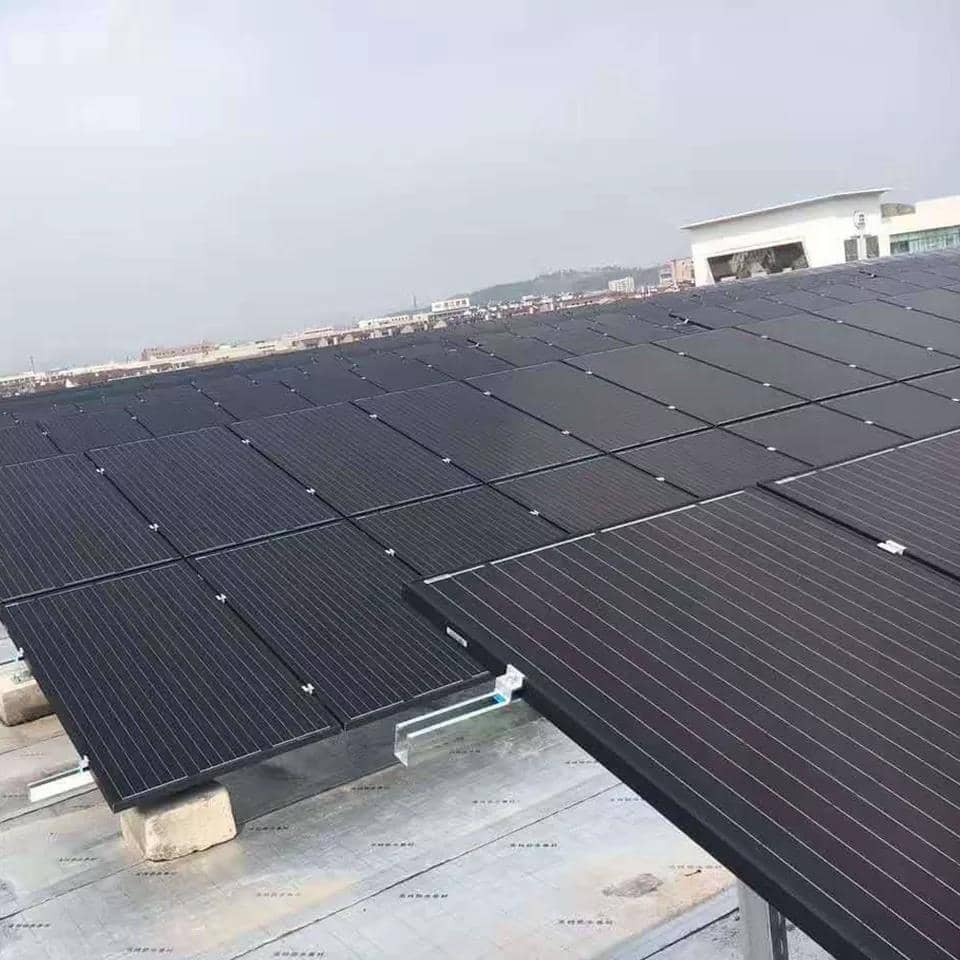

Picture Example:

Lead time:

Quantity(watts)	1 – 100	101 – 10000000	10000001 – 500000000	>500000000
Lead time (days)	7	15	30	To be negotiated

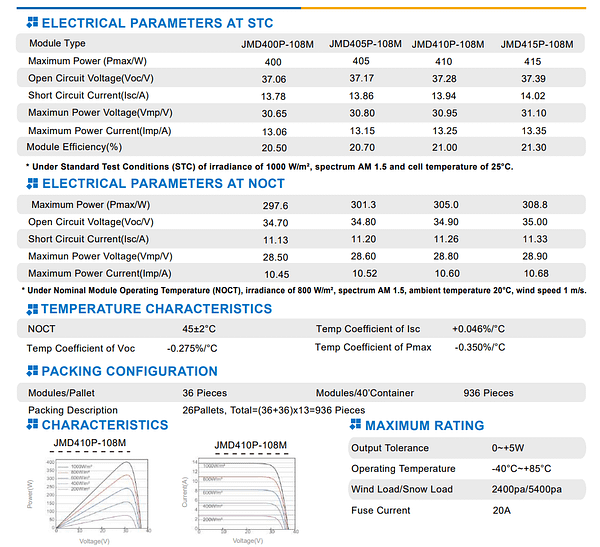

Product Parameters

Maximum Power.Pmax(W)	400	405	410	415
Open Circuit Voltage -Voc(V)	37.06	37.17	37.28	37.39
Short -Circuit Current -Isc(A)	13.78	13.86	13.94	14.02
Current at Pmax -Imp(A)	13.06	13.15	13.25	13.35
Voltage at Pmax -Vmp(V)	30.65	30.80	30.95	31.00
Module Effciency	20.5	20.7	21.0	21.3

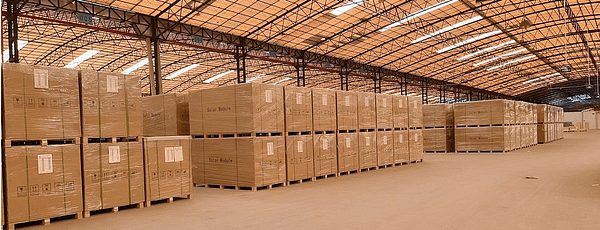

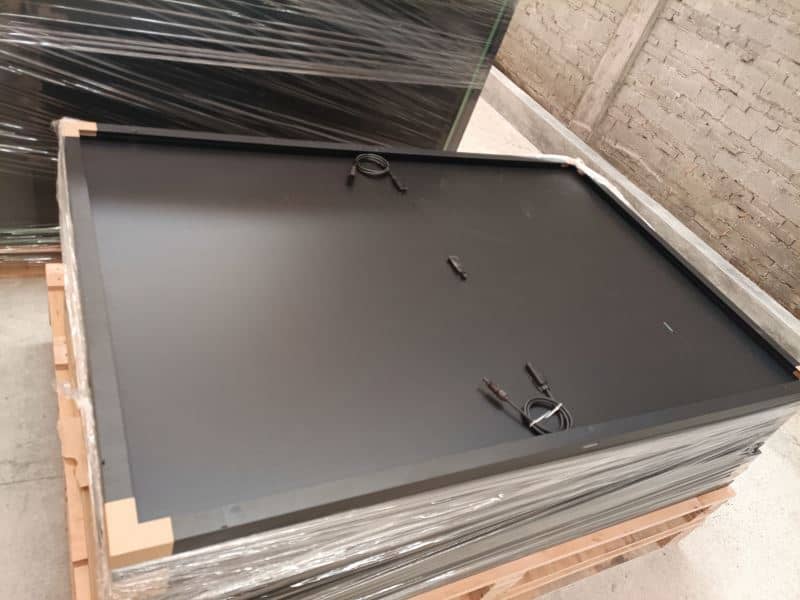

Packing&Shipping

36pcs/pallet

26pallet/40″ container

936pcs/40″ container

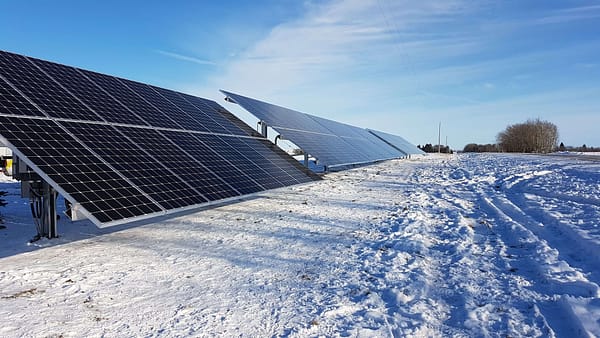

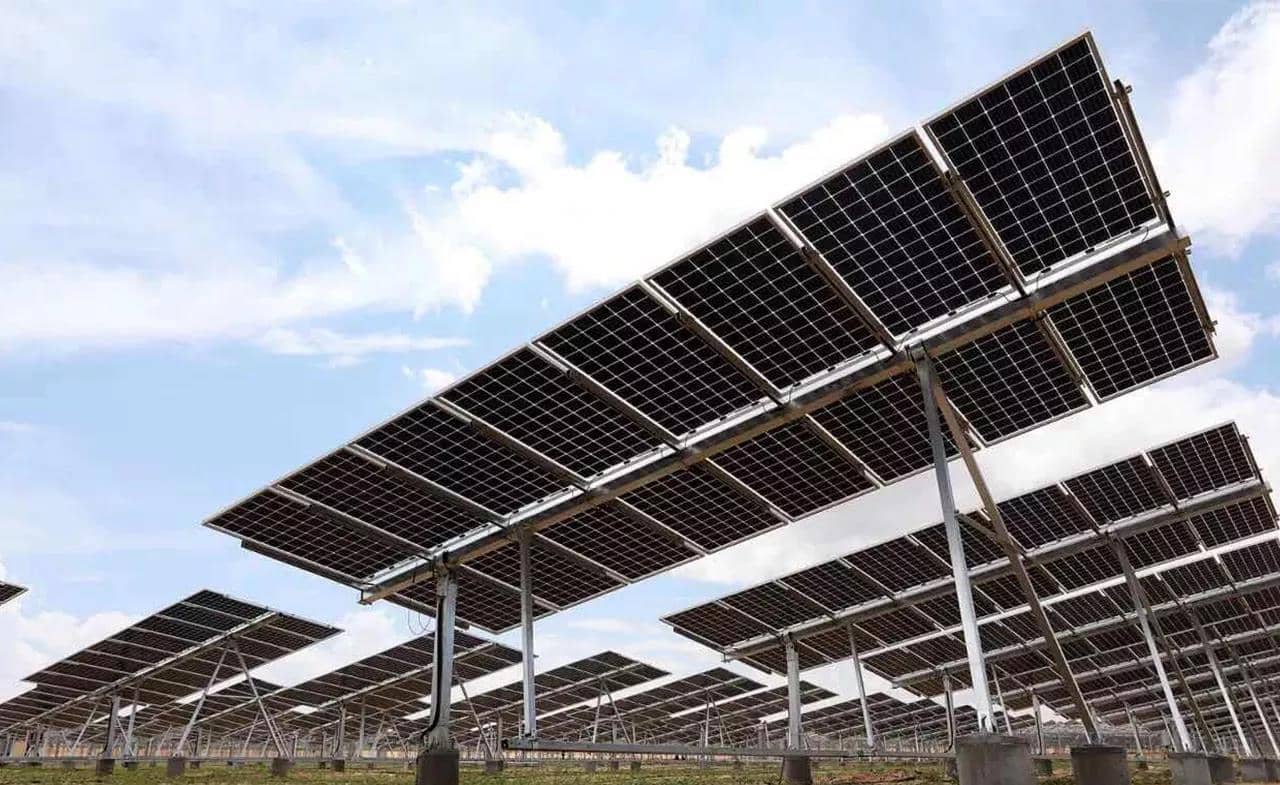

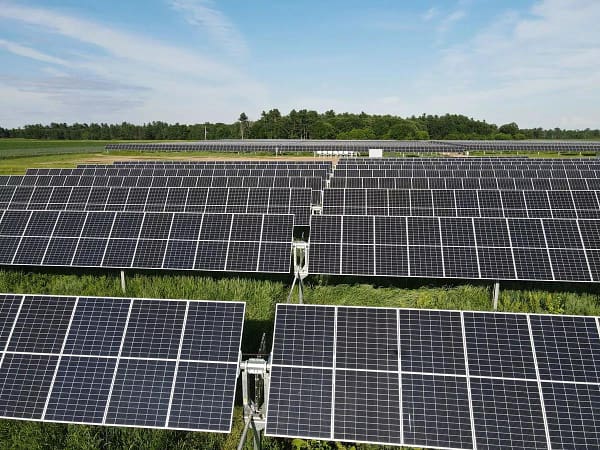

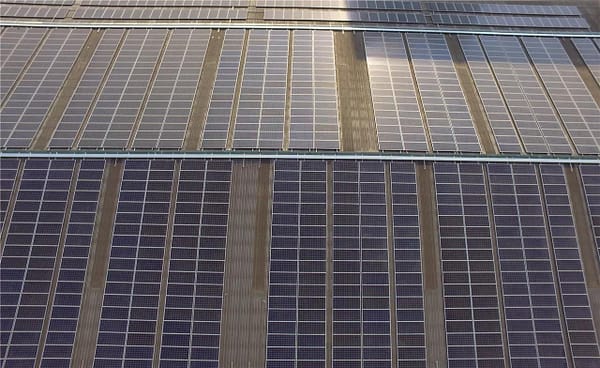

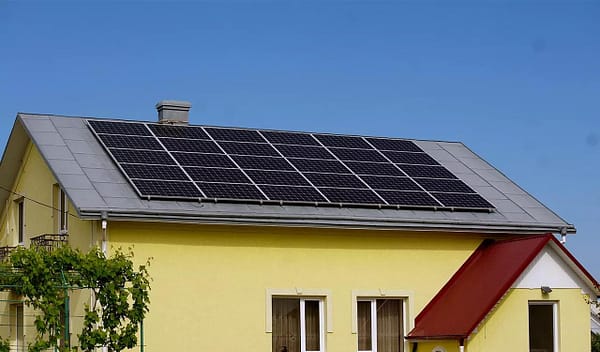

Project
